Fortu Tech specializes in manufacturing Tantalum Capillary Tube.
| Dimension of Tantalum Capillary Tube | ||||
| Materials | OD(mm) | OD(inch) | WT(mm) | WT(inch) |
| Tantalum tube | 3.2 | 0.126 | 1.7 | 0.067 |
| Tantalum tube | 2.5 | 0.098 | 1 | 0.039 |
| Tantalum tube | 2 | 0.079 | 0.8 | 0.031 |
| Tantalum tube | 1.07 | 0.042 | 0.23 | 0.009 |
Use finished tube blanks, and clean the oil stains and impurities on the inner/outer surfaces of the tube blanks.
The material is rolled, cleaned and annealed multiple times until the dimensions are just right.
The tube is subjected to multiple fixed stretches with a freely moving core.
Pipes are straightened, cleaned, and cut.
Inspect and ensure high quality tantalum capillary tubing.
| Chemical Requirements Pure Tantalum R05200 | |||||||||||
| Element % | C | O | N | H | Nb | Fe | Ti | W | Mo | Si | Ni |
| Pure Tantalum | 0.01 | 0.015 | 0.01 | 0.0015 | 0.1 | 0.01 | 0.01 | 0.05 | 0.02 | 0.005 | 0.01 |
| Chemical Requirements Pure Tantalum R05400 | |||||||||||
| Element % | C | O | N | H | Nb | Fe | Ti | W | Mo | Si | Ni |
| Pure Tantalum | 0.01 | 0.03 | 0.01 | 0.0015 | 0.1 | 0.01 | 0.01 | 0.05 | 0.02 | 0.005 | 0.01 |
If you have inquiry or want to discuss your design with us, please write email to us.
We will reply your email within 24 hours.
| Mechanical Properties Pure Tantalum Tube | |||
| ASTM Standard | Ultimate Tensile Strength | Yield Strength | Elongation |
| ASTM B521 | 207 MPa | 138 MPa | 25% |

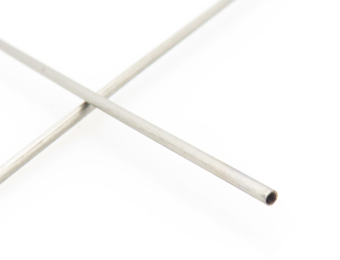

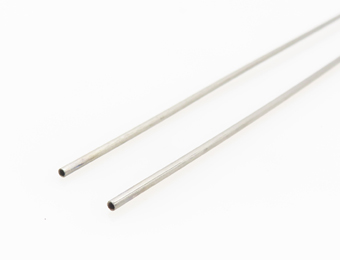

Tantalum capillary tube/tantalum microtube/tantalum thin tube is a small-sized tantalum tube made from tantalum tube blank.
Tantalum capillaries are used in a wide variety of applications: as filament lead tubes for cathode insulators in x-ray tubes. Used as marking tape in the medical field. Tantalum capillary tubes can also be used as thermocouple tubes.
In addition, tantalum capillary tubes are also widely used in the hard tool industry.
