Fortu Tech specializes in manufacturing Titanium Grade 5 Alloys (Ti6Al4V) products.
| Ti6Al4V alloys Regular Product Ti Gr.5 | ||

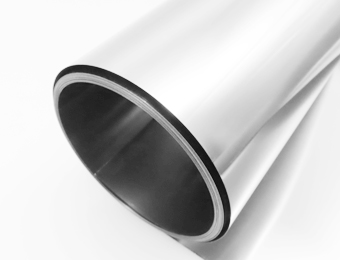

| Ti Grade 5 Foil | Ti Grade 5 Wire | Ti Grade 5 Sheet |

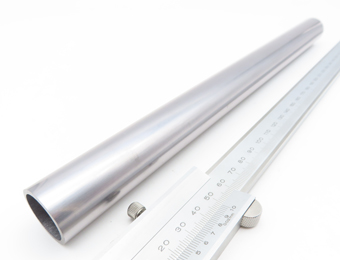

| Ti Grade 5 Rod | Ti Grade 5 Targets | Ti Grade 5 Tube |
| Ti Grade 5 Pellet | Ti Grade 5 Fasteners | Ti Grade 5 Ingot |
| Titanium Grade 5 Alloys/Ti-6Al-4V | ||
| Shape | Standard | Grade |
| Ti Gr5 Forgings | ASTM B 381 | Grade F-5 Titanium alloy (6% aluminum, 4% vanadium) |
| Ti Gr5 Bar/Billets | ASTM B 348 | Grade 5 Titanium alloy (6% aluminum, 4% vanadium) |
| Ti Gr5 Sheet/Strip/Plate | ASTM B 265 | Grade 5 Titanium alloy (6% aluminum, 4% vanadium) |
| Ti Gr5 Seamless Pipe | ASTM B 861 | Grade 5 Titanium alloy (6% aluminum, 4% vanadium) |
| Ti Gr5 Welded Pipe | ASTM B 862 | Grade 5 Titanium alloy (6% aluminum, 4% vanadium) |
Ti Grade 5 alloy is an α-β alloy. It contains 6% of α stable element Al and 4% of β stable element V. Ti6Al4V alloy has good tensile properties at room temperature. Ti Gr.5 forms a very thin and protective oxide film when heated below 430 degrees Celsius for a long time.
Titanium Gr 5 Alloys have an effective resistance to creep at 300°C. Titanium Gr.5 alloy has excellent resistance to fatigue and crack growth. So it's one of the most versatile alloys of titanium. Ti6Al4V also has excellent corrosion resistance.
| Chemical Requirements Titanium Gr 5 | |||||||
| Element % | N | C | H | Fe | O | Al | V |
| Content Maximum % | 0.05 | 0.08 | 0.015 | 0.4 | 0.2 | 5.5~6.75 | 3.5~4.5 |
If you have inquiry or want to discuss your design with us, please write email to us.
We will reply your email within 24 hours.
| Mechanical Properties Titanium Grade 5 Alloys | ||
| Ultimate Tensile Strength | Yield Strength | Elongation |
| 895 MPa | 828 MPa | 10% |
| High temperature of Ti-6Al-4V forging | |||
| Heating temperature | Heating coefficient | Heating time | |
| 1 time fire | 1150℃～1180℃ | 0.65～0.80min/mm | - |
| 2 times fire | 1080℃～1100℃ | - | 30～180min |
Ti-6Al-4V alloy is suitable for manufacturing parts in a wide temperature range from -196 degrees Celsius to 450 degrees Celsius, especially parts designed with the principle of damage tolerance. So titanium Grade 5 can be used in Aerospace and Aircraft industry.
Ti6Al4V are able to be used in sports equipment. It is also used in medical industry and chemical industry.
