Fortu Tech specializes in manufacturing Ti Grade 4 products.
| Ti Grade 4 Regular Product | ||
| Ti Grade 4 Foil | Ti Grade 4 Wire | Ti Grade 4 Sheet |

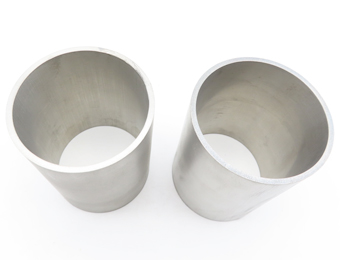

| Ti Grade 4 Rod | Ti Grade 4 Targets | Ti Grade 4 Tube |

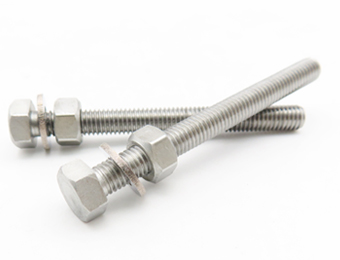

| Ti Grade 4 Pellet | Ti Grade 4 Fasteners | Ti Grade 4 Ingot |
Titanium Grade 4 is considered the strongest of the four types of commercial pure titanium. Ti Gr4 has excellent corrosion resistance.
Titaium Grade 4 plate, Titaium Grade 4 rod, Titaium Grade 4 foil, Titaium Grade 4 wire all have good formability and weldability.
| Chemical Requirements Ti Grade 4 | |||||
| Element % | Ni | C | H | Fe | O |
| Titanium Grade 4 | 0.05 | 0.08 | 0.015 | 0.5 | 0.4 |
If you have inquiry or want to discuss your design with us, please write email to us.
We will reply your email within 24 hours.
| Mechanical Properties Titanium Grade 4 | |||
| ASTM Standard | Ultimate Tensile Strength | Yield Strength | Elongation |
| ASTM B265 Grade 4 | 550 MPa | 483 MPa~655 MPa | 15% |
| ASTM B348 Grade 4 | 550 MPa | 483 MPa | 15% |
| ASTM B381 Grade 4 | 550 MPa | 483 MPa | 15% |
| ASTM B861 Grade 4 | 550 MPa | 483 MPa | 15% |
Titanium Gr4 plate, Titanium Gr4 rod, Titanium Gr4 foil, Titanium Gr4 wire are used to make some fuselage components, cryogenic vessels, heat exchangers.
