Fortu Tech specializes in manufacturing Zr 704 products.
| Zr R60704 Regular Product | ||
| Zr 704 Foil | Zr 704 Wire | Zr 704 Sheet |

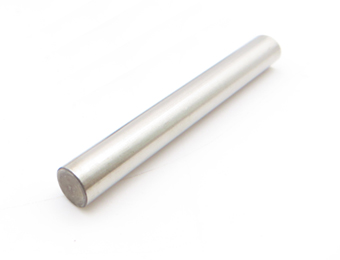

| Zr 704 Rod | Zr 704 Targets | Zr 704 Tube |

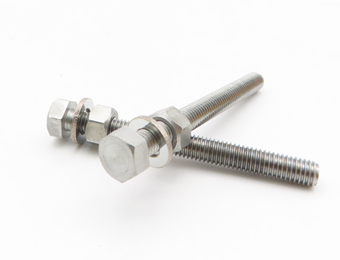

| Zr 704 Pellet | Zr 704 Fasteners | Zr 704 Ingot |
Zirconium 704 is a type of zirconium alloy containing Tin. Tin content is 1.0-2.0. Fe+Cr content is 0.2-0.4.
Zr R60704 has excellent resistance to highly corrosive environments. It is resistant to high concentrations of acid and alkaline solutions.
| Chemical Requirements Zirconium 704 | ||||||||
| Element % | Zr+Hf | Hf | Fe+Cr | Sn | H | N | C | O |
| Zirconium R60704 | 97.5 | 4.5 | 0.2-0.4 | 1.0-2.0 | 0.005 | 0.025 | 0.05 | 0.18 |
If you have inquiry or want to discuss your design with us, please write email to us.
We will reply your email within 24 hours.
| Mechanical Properties Zirconium R60704 | |||
| ASTM Standard | Ultimate Tensile Strength | Yield Strength | Elongation |
| ASTM B493 R60704 | 415 MPa | 240 MPa | 14% |
| ASTM B550 R60704 | 415 MPa | 240 MPa | 14% |
| ASTM B551 R60704 | 415 MPa | 240 MPa | 14% |
| ASTM B523 R60704 | 415 MPa | 240 MPa | 14% |
| ASTM B658 R60704 | 415 MPa | 240 MPa | 14% |

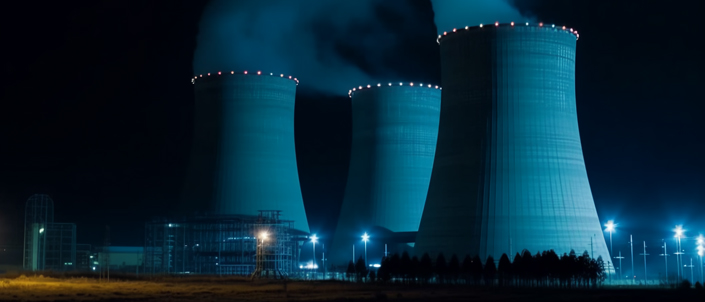

Zr 704 plate, Zr 704 rod, Zr 704 foil, Zr Grade 704 wire are widely used in chemical industry. Zirconium 704 is also commonly used in nuclear applications.
