Fortu Tech specializes in manufacturing Ta10W products.
| Ta-10W alloys UNS Grade R05255 | ||

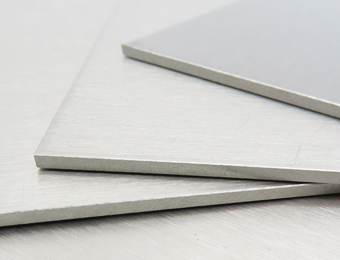

| Ta-10W Foil | Ta-10W Wire | Ta-10W Sheet |

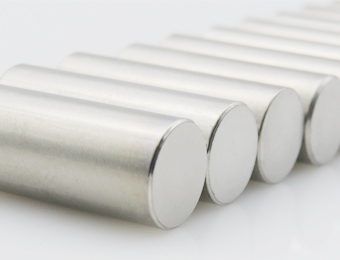

| Ta-10W Rod | Ta-10W Targets | Ta-10W Tube |
| Ta-10W Pellet | Ta-10W Fasteners | Ta-10W Ingot |
| ASTM Standard Tantalum alloy | |||
| ASTM B 364 R05255 | ASTM B 708 R05255 | ASTM B 521 R05255 | ASTM B 365 R05255 |
Density of Ta10W alloys is 16.84 g·cm-3. Melting Point is 3033 ˚C. Ta10W alloys can be produced through vacuum-arc melted, electron-beam (EB) furnace melted.
The combination of Vacuum-arc melted and EB melted can produce the Ta10W alloys as well.
Tantalum-10%Tungsten has good mechanical properties at high temperature. Under recrystallization and deformation conditions, Ta-10W has low temperature ductility and machinability, so the welding performance of Ta-10W is particularly good. Ta10W is also resistant to corrosion.
| 90 % tantalum 10 % tungsten | ||||||||||||
| Element % | C | N | O | H | Nb | Fe | Ti | W | Mo | Si | Ni | Ta |
| Ta10W alloys | 0.01 | 0.01 | 0.015 | 0.0015 | 0.1 | 0.01 | 0.01 | 9~11 | 0.02 | 0.005 | 0.01 | Balance |
If you have inquiry or want to discuss your design with us, please write email to us.
We will reply your email within 24 hours.
| Mechanical Properties of R05255 Ta-10W alloys | ||||
| ASTM Standard | Size | Ultimate Tensile Strength | Yield Strength | Elongation |
| ASTM B708 | Sheet and Strip | 482 MPa | 414 MPa | 15% |
| ASTM B708 | Plate | 482 MPa | 379 MPa | 20% |
| ASTM B365 | 0.125 in. to 2.5 in. | 482 MPa | 379 MPa | 20% |
| ASTM B521 | - | 481 MPa | 414 MPa | 15% |
Tantalum 10 tungsten can be used at high temperatures up to 2500 degrees Celsius.
Tantalum-10%Tungsten is widely used at high temperatures and chemical industry.
In the aerospace field, Tantalum R05255 is also used in nozzles, inserts, orientations, and structural materials.
Ta10W is used in rolling mill products and Ta-10W can be machined into mesh components and assemblies.
Because of its excellent welding properties, Ta10W wire can be used for welding purposes.
