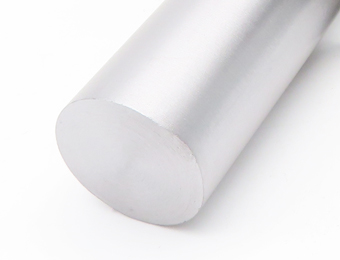

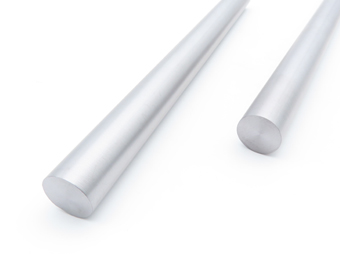

Fortu Tech is an ISO Certified Corporation located in China and specializes in manufacturing Nb-752 Niobium Alloy rod. We have more than 20 years of production experience. Our products are Conflict Free material.
| Common specifications | ||||||||
| Thickness inch | 0.15 | 0.2 | 0.25 | 0.3 | 0.35 | 0.4 | 0.45 | 0.5 |
| Thickness mm | 3.81 | 5.08 | 6.35 | 7.62 | 8.89 | 10.16 | 11.43 | 12.7 |
Fortu Tech can customize the Nb10W2.5Zr alloys rod according to your demand. Welcome to contact us if you have any questions or requirements.
Niobium Cb-752 Alloy Bar of us meets the standard AMS 7855 UNS R04271.
Nb752 Niobium Alloy Bar has excellent high temperature stability. It is often used in the aerospace industry. Nb10W2.5Zr alloys bar not only has high strength but also good hardness properties.
The Nb-752 Niobium Alloy bar has good corrosion resistance and excellent thermal conductivity.
| AMS 7855 Chemical Requirements Nb-10W-2.5Zr Alloy Rod R04271 | ||||||||||
| Element % | W | Zr | Ta | C | Si | Fe | Ti | O | N | H |
| Content Maximum % | 9-11 | 2.0-3.0 | 0.015 | 0.03 | 0.02 | 0.02 | 0.01 | 0.02 | 0.01 | 0.001 |
If you have inquiry or want to discuss your design with us, please write email to us.
We will reply your email within 24 hours.
| Mechanical Properties of Nb-10W-2.5Zr alloys rod AMS 7855 | ||||
| Ultimate Tensile Strength | Yield Strength | Elongation | Reduction of Area | |
| Room temperature: | 75 min, ksi | 60 min, ksi | 20% | 30% |
| Room temperature: | 517 min, MPa | 414 min, MPa | 20% | 30% |
| 2000 °F (1204°C): | 25 min, ksi | 20 min, ksi | 20% | - |
| 2000 °F (1204°C): | 172 min, MPa | 138 min, MPa | 20% | - |
Nb-10W-2.5Zr alloys bar is widely used in the manufacture of aeroengine parts, high-temperature structural parts and thermal conductivity components. The high temperature stability and strength of Columbium CB-752 Alloy Rod make it one of the key materials in the aerospace industry. Nb-W-Zr alloys bar also has important applications in high temperature heat treatment equipment, thermal measuring instruments, high temperature melting equipment and so on.
In addition to Niobium Cb-752 alloys Rod & Bar, we also produce Niobium Cb-752 alloys Ingot, Niobium Cb-752 alloys Sheet & Plate, Niobium Cb-752 alloys Wire, Niobium Cb-752 alloys Foil & Strip, Niobium Cb-752 alloys Disc, Niobium Cb-752 alloys machined parts, Niobium Cb-752 alloys Spherical Powder. They meet Standard AMS 7851, AMS 7855, UNS R04271.
