Fortu Tech is an ISO Certified Corporation located in China and specializes in manufacturing Nb-752 Niobium Alloy Sheet & Plate. We have more than 20 years of production experience. Our products are Conflict Free material.
Common specifications | ||||||||
Thickness inch | 0.15 | 0.2 | 0.25 | 0.3 | 0.35 | 0.4 | 0.45 | 0.5 |
Thickness mm | 3.81 | 5.08 | 6.35 | 7.62 | 8.89 | 10.16 | 11.43 | 12.7 |
Fortu Tech can customize the Nb10W2.5Zr alloys Sheet according to your demand. Welcome to contact us if you have any questions or requirements.
Niobium Cb-752 Alloy Plate of us meets the standard AMS 7851 UNS R04271.
Columbium Cb-752 Alloys Plate alloy has excellent high temperature strength. Even under extreme high temperature conditions, the Nb-87.5% W-10% Zr-2.5% alloys Plate can maintain sufficient mechanical strength and stability. This makes it possible for Nb-752 niobium alloys plates are widely used to make parts that need to withstand high temperature loads.
The application of Nb10W2.5Zr alloys sheet in oxidizing atmosphere requires a protective coating. The main reason is to slow down the oxidation reaction on the surface of Nb-752 niobium alloys. This prevents the brittle destruction of the oxide layer, thereby protecting the surface of the Niobium Cb-752 Alloys Plate and extending its service life. Nb-W-Zr alloys Sheet also has excellent thermal stability.
AMS 7851 Chemical Requirements Nb-10W-2.5Zr Alloy Sheet&Plate R04271 | ||||||||||
Element % | W | Zr | Ta | C | Si | Fe | Ti | O | N | H |
Content Maximum % | 9-11 | 2.0-3.0 | 0.015 | 0.03 | 0.02 | 0.02 | 0.01 | 0.02 | 0.01 | 0.001 |
If you have inquiry or want to discuss your design with us, please write email to us.
We will reply your email within 24 hours.
Mechanical Properties of Nb-10W-2.5Zr alloys Sheet AMS 7851 | |||
Ultimate Tensile Strength | Yield Strength | Elongation | |
Room temperature: | 75 min, ksi | 60 min, ksi | 15% |
Room temperature: | 517 min, MPa | 414 min, MPa | 15% |
2000 °F (1204°C): | 30 min, ksi | 25 min, ksi | 15% |
2000 °F (1204°C): | 207 min, MPa | 172 min, MPa | 15% |
Bend Angle of Cb752 alloys Sheet & Plate | ||
Inches | Millimeter | Angle Degress |
0.001"~0.06" | 0.025mm~1.52mm | 180 |
over 0.05" | over 1.52mm | 90 |

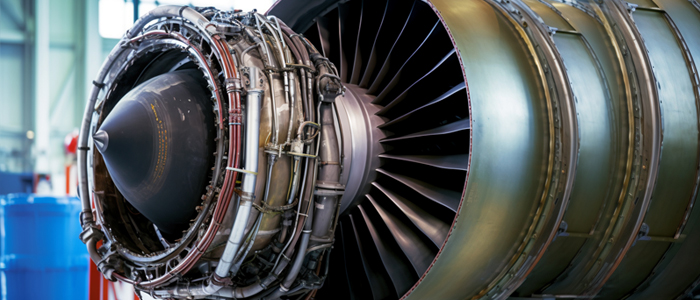

Niobium Tungsten Alloys Sheet has excellent high temperature strength, thermal stability, corrosion resistance and other characteristics. Niobium Cb-752 alloys plates have been used to make high-temperature components, such as turbine blades for aircraft engines and structural components for nuclear reactors.
In addition to Niobium Cb-752 alloys Sheet & Plate, we also produce Niobium Cb-752 alloys Ingot, Niobium Cb-752 alloys Foil & Strip, Niobium Cb-752 alloys Rod & Bar, Niobium Cb-752 alloys Wire, Niobium Cb-752 alloys Disc, Niobium Cb-752 alloys machined parts, Niobium Cb-752 alloys Spherical Powder. They meet Standard AMS 7851, AMS 7855, UNS R04271.
