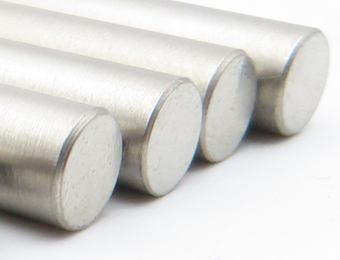

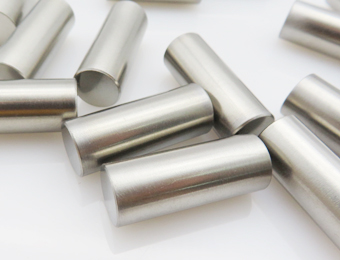

Fortu Tech is an ISO Certified Corporation located in China and specializes in manufacturing Pure Niobium Rod&Bar. We have more than 20 years of production experience. Our products are Conflict Free material.
| Common specifications | ||||||||
| Thickness inch | 0.15 | 0.2 | 0.25 | 0.3 | 0.35 | 0.4 | 0.45 | 0.5 |
| Thickness mm | 3.81 | 5.08 | 6.35 | 7.62 | 8.89 | 10.16 | 11.43 | 12.7 |
The Cas No. of Nb bar is 7440-03-1.
Niobium rod is a highly high-temperature, corrosion-resistant metal material with a variety of unique properties. First, it has an extremely high melting point, reaching about 2,477 degrees Celsius, which makes it stable in extremely high temperature environments.
Second, Nb rod shows excellent mechanical properties, with good strength and hardness, so that it can still maintain a stable structure under high temperature and pressure.
In addition, Niobium bar has good corrosion resistance to many chemicals, including acids, alkalis, salt solutions, etc., making it capable of long-term stable operation in a variety of harsh environments. In addition, Nb bar also has superconducting properties, showing superconductivity at low temperatures, which makes it have a wide range of applications in scientific research and medical equipment. Finally, Columbium rod has good processability and can be made into different shapes and sizes through a variety of processes to meet a variety of engineering needs.
| ASTM B392 R04200 Chemical Requirements Niobium Rod&Bar | ||||||||||||||||||
| Element % | C | N | O | H | Zr | Ta | Fe | Si | W | Ni | Mo | Hf | Ti | B | Al | Be | Cr | Co |
| Content Maximum % | 0.01 | 0.01 | 0.015 | 0.0015 | 0.02 | 0.1 | 0.005 | 0.005 | 0.03 | 0.005 | 0.01 | 0.02 | 0.02 | 2 ppm | 0.002 | 0.005 | 0.002 | 0.002 |
| ASTM B392 R04210 Chemical Requirements Niobium Rod&Bar | ||||||||||||||
| Element % | C | N | O | H | Zr | Ta | Fe | Si | W | Ni | Mo | Hf | Ti | Al |
| Content Maximum % | 0.01 | 0.01 | 0.025 | 0.0015 | 0.02 | 0.3 | 0.01 | 0.005 | 0.05 | 0.005 | 0.02 | 0.02 | 0.03 | 0.005 |
| The specification of ASTM B392 | |
| ASTM B 392 UNS R04200 Type 1 | Reactor grade unalloyed niobium rod and niobium bar |
| ASTM B 392 UNS R04210 Type 2 | Commercial grade unalloyed niobium rod and niobium bar |
| ASTM B 392 UNS R04251 Type 3 | Reactor grade niobium alloy containing 1 % zirconium, Nb1Zr rod and Nb1Zr bar |
| ASTM B 392 UNS R04261 Type 4 | Commercial grade niobium alloy containing 1 % zirconium, Nb1Zr rod and Nb1Zr bar |
| ASTM B 392 UNS R04220 Type 5 | RRR grade pure niobium, RRR Nb rod and RRR Nb bar |
If you have inquiry or want to discuss your design with us, please write email to us.
We will reply your email within 24 hours.
Annealed Condition (90% Minimum Recrystallized)
| Mechanical Properties of Nb Rod ASTM B392 | |||
| Diameter | Ultimate Tensile Strength | Yield Strength | Elongation |
| 0.020" to 0.124" | 18 000 min, psi | 20% | |
| 0.51mm to 3.145mm | 125 min, Mpa | 15% | |
| 0.125" to 2.5" | 18 000 min, psi | 10 500 min, psi | 25% |
| 3.18mm to 63.5mm | 125 min, Mpa | 73 min, Mpa | 20% |
| Cas No. of Nb | 7440-3-1 |
| EINECS No.of Nb | 231-113-5 |
| Element class of Nb | Transition metal element |
| Density of Nb | 8570kg/m3；8.57g/cm3 |
| Melting Point of Nb | 2468 ℃ |
| Boiling Point of Nb | 4742 ℃ |
| Electronegativity of Nb | 1.6 |
| Atomic radius of Nb | 146pm |
| Thermal Conductivity of Nb | (300 K) 53.7 W·m−1K−1 |
| Electrical Resistivityof Nb | (0 °C) 152 nΩ·m |
Pure Niobium is a commonly used superconductor material, and Niobium bar can be used to manufacture superconductor wires, superconducting magnets, etc., for applications in magnetic resonance imaging (MRI), nuclear fusion, particle accelerators and other fields. Because Pure niobium has good high temperature performance, Nb rod can be used as parts in high temperature environments, such as high temperature reactors, high temperature containers, etc. In research laboratories, Pure Niobium rod can be used to manufacture components for a variety of experimental equipment, such as accessories in vacuum systems, clamps, laboratory sample holders, etc. Niobium bar can also be used to manufacture electrodes, capacitors and other components in electronic devices due to its good electrical conductivity and corrosion resistance. Nb bar can be used to manufacture various components in high temperature vacuum equipment, such as brackets in vacuum furnaces, heating elements, etc.
In addition to Niobium Rod&Bar, we also produce Niobium Tube & Pipe, Niobium Sheet & Plate, Niobium Foil & Strip, Niobium Ingot, Niobium Pellets, Niobium Wire, Niobium Disc, Niobium Shield, Niobium Target, Niobium machined parts, Niobium Spherical Powder. They meet Standard ASTM B 394 R04200, ASTM B 394 R04210, ASTM B 393 R04200, ASTM B 393 R04210, ASTM B 392 R04200, ASTM B 392 R04210, ASTM B 391 R04200, ASTM B 391 R04210.
