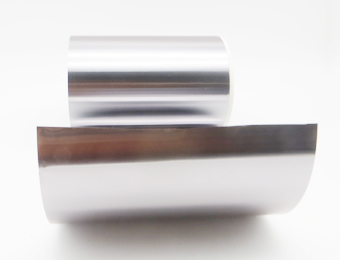

Fortu Tech is an ISO Certified Corporation located in China and specializes in manufacturing C103 Niobium-Hafnium Alloy Foil. We have more than 20 years of production experience. Our products are Conflict Free material.
| Common specifications | ||||||||
| Thickness inch | 0.01 | 0.02 | 0.03 | 0.04 | 0.05 | 0.08 | 0.1 | 0.125 |
| Thickness mm | 0.254 | 0.508 | 0.762 | 1.016 | 1.27 | 2.032 | 2.54 | 3.175 |
Fortu Tech can customize the Nb10Hf alloys Foil according to your demand. Welcome to contact us if you have any questions or requirements.
C103 Niobium-Hafnium Alloy Foil of us meets the standard ASTM B654 R04295.
Melting Point of of Columbium Nb C-103 alloys foil is 2350 ± 50ºC ( 4260 ± 90ºF). Density of Nb C-103 alloys foil is 0.320 lbs./in.3 (8.85 gm./cm.3). Nb-C103 alloys Foil can withstand high stress levels at high temperatures. NbHfTi foil supports low tough-brittle transition temperatures of high-frequency vibration at low temperatures. Rocket engines usually operate at temperatures up to 1,482 °C(2,700 °F).

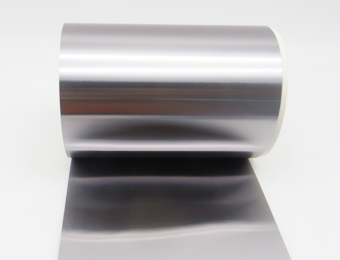

Niobium C-103 Alloys Strip and Niobium C-103 Alloys Disc have excellent mechanical properties at all temperatures.
Niobium Hafnium C103 alloys Strip can be used for the applications of rocket engine. Nb-C103 alloys Strip also has excellent manufacturability. Nb-C103 alloys machining to Nb-C103 alloys foil is feasible.
| ASTM B654 Chemical Requirements Niobium-Hafnium Alloy Foil R04295 | |||||||||
| Element % | Hf | Ti | C | O | N | H | Zr | W | Ta |
| Content Maximum % | 9-11 | 0.7-1.3 | 0.015 | 0.025 | 0.01 | 0.0015 | 0.7 | 0.5 | 0.5 |
If you have inquiry or want to discuss your design with us, please write email to us.
We will reply your email within 24 hours.
| Mechanical Properties of Nb C103 alloys Foil ASTM B654 | |||
| Ultimate Tensile Strength | Yield Strength | Elongation | |
| Room temperature: | 56 000 min, psi | 40 000 min, psi | 20% |
| Room temperature: | 385 min, MPa | 275 min, MPa | 20% |
| 2000+/- 25°F [1100 +/- 15°C]: | 21 000 min, psi | 16 000 min, psi | 20% |
| 2000+/- 25°F [1100 +/- 15°C]: | 145 min, MPa | 110 min, MPa | 20% |
Size: 0.050 in. [1.3 mm] and thinner in thickness
| Mechanical Properties of Nb C103 alloys Foil ASTM B654 | |||
| Ultimate Tensile Strength | Yield Strength | Elongation | |
| Room temperature: | 54 000 min, psi | 38 000 min, psi | 20% |
| Room temperature: | 370 min, MPa | 260 min, MPa | 20% |
| 2000+/- 25°F [1100 +/- 15°C]: | 21 000 min, psi | 16 000 min, psi | 20% |
| 2000+/- 25°F [1100 +/- 15°C]: | 145 min, MPa | 110 min, MPa | 20% |
Size: 0.051 in. [1.3 mm] and greater in thickness
Niobium Hafnium alloys Foil is not only light in weight but also has good heat resistance. Nb10Hf alloys Foil is used in large quantities to manufacture components for the aerospace industry. NbHf10Ti1Zr0.7 alloys also possess the properties of strong vibration resistance and low temperature resistance. So Nb10Hf alloys Foil can be used in space. Niobium C-103 Alloys Foil is machined into superheated thrusters, parts for rocket engines, and scramjet components. The preferred material for liquid rocket propulsion nozzles is Nb-Hf-Ti alloys.
In addition to Niobium C-103 alloys foil, we also produce Niobium C-103 alloys Ingot, Niobium C-103 alloys Sheet & Plate, Niobium C-103 alloys Rod & Bar, Niobium C-103 alloys Wire, Niobium C-103 alloys Strip, Niobium C-103 alloys Disc, Niobium C-103 alloys machined parts, Niobium C103 Alloy Spherical Powder.They meet Standard R04295, ASTM B 652, ASTM B 655, ASTM B 654, AMS 7852, AMS 7857.
