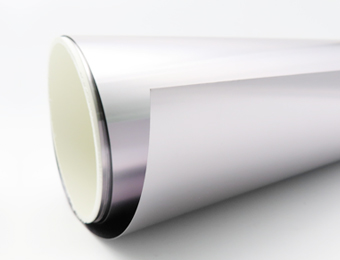

Fortu Tech is an ISO Certified Corporation located in China and specializes in manufacturing Pure Tantalum Foil. We have more than 20 years of production experience. Our products are Conflict Free material.
| Common specifications | ||||||||
| Thickness inch | 0.01 | 0.02 | 0.03 | 0.04 | 0.05 | 0.08 | 0.1 | 0.125 |
| Thickness mm | 0.254 | 0.508 | 0.762 | 1.016 | 1.27 | 2.032 | 2.54 | 3.175 |

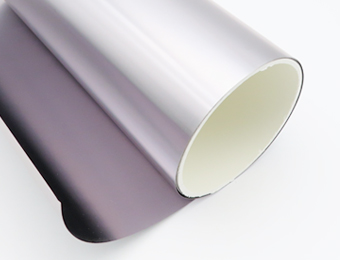

The CAS Number of tantalum strip is 7440-25-7.
The main component of tantalum foil is tantalum, and the purity of tantalum foil is usually higher than 99.95%.
The density of tantalum strip is about 16.6 g/cm3. Tantalum strip has a melting point of up to 2996°C.
Ta foil has good strength and ductility.
In terms of chemical properties, tantalum foil has excellent corrosion resistance to acids, alkalis and chlorides. However, the stability of tantalum strip in hydrofluoric acid is fragile. Ta strip can form a dense oxide film in the air, which enhances the corrosion resistance and stability of tantalum foil. These characteristics make tantalum foil perform well in high temperature and corrosive environments.
| ASTM B708 R05200 Chemical Requirements Tantalum Foil | |||||||||||
| Element% | C | N | O | H | Ti | Nb | Fe | Si | W | Ni | Mo |
| Content Maximum % | 0.01 | 0.01 | 0.015 | 0.0015 | 0.01 | 0.1 | 0.01 | 0.005 | 0.05 | 0.01 | 0.02 |
| ASTM B708 R05400 Chemical Requirements Tantalum Foil | |||||||||||
| Element% | C | N | O | H | Ti | Nb | Fe | Si | W | Ni | Mo |
| Content Maximum % | 0.01 | 0.01 | 0.03 | 0.0015 | 0.01 | 0.1 | 0.01 | 0.005 | 0.05 | 0.01 | 0.02 |
| The specification of ASTM B708 | |
| ASTM B 708 R05200 | Unalloyed tantalum, electron-beam furnace or vacuum-arc melt, or both, tantalum foil and tantalum strip |
| ASTM B 708 R05400 | Unalloyed tantalum, powder-metallurgy consolidation tantalum foil and tantalum strip |
| ASTM B 708 R05255 | Tantalum alloy, 90 % tantalum, 10 %tungsten, electron-beam furnace of vacuum-arc melt, or both, Ta10W foil and Ta10W strip |
| ASTM B 708 R05252 | Tantalum alloy, 97.5 % tantalum, 2.5 %tungsten, electron-beam furnace or vacuum-arc melt, or both, Ta2.5W foil and Ta2.5W strip |
| ASTM B 708 R05240 | Tantalum alloy, 60 % tantalum, 40 % niobium, electron-beam furnace or vacuum-arc melt, Ta40Nb foil and Ta40Nb strip |
If you have inquiry or want to discuss your design with us, please write email to us.
We will reply your email within 24 hours.
| Mechanical Properties of Ta Foil ASTM B708 | |||
| Thickness | Ultimate Tensile Strength | Yield Strength | Elongation |
| Less than 0.06" | 30 000 min, psi | 20 000 min, psi | 20% |
| Less than 0.06" | 207 min, Mpa | 138 min, Mpa | 20% |
| Cas No. of Ta | 7440-25-7 |
| EINECS No.of Ta | 231-135-5 |
| Element class of Ta | Transition metal element |
| Relative atomic mass of Ta | 180.94788(12C = 12.0000) |
| Density of Ta | 16650kg/m3；16.654g/cm3 |
| Melting Point of Ta | 2996 ℃ |
| Boiling Point of Ta | 5425 ℃ |
| Hardness of Ta | 6.5 |
| Position of Ta | Period six, group VB, region d |
| Atomic volume of Ta | 10.90cm3/mol |
| Linear expansion coefficient of Ta 0～100℃ | 6.5×10-6 K-1 |
| Critical temperature of superconducting transition of Ta | 4.38K |
| Temperature Coefficient of Resistivity of Ta | 3820 ppm/°C |
Tantalum foils are mainly used in the manufacture of high-performance solid-state capacitors, especially in mobile phones, computers and other consumer electronics. Tantalum strips are also used in high-frequency circuits and high-temperature electrical components. Ta strip is widely used in chemical reactors, storage tanks and pipelines because of its excellent corrosion resistance.
In the medical industry, tantalum foils are also commonly used to manufacture biocompatible implants and medical devices, such as heart stents and orthopedic implants. Ta alloys foils are also used in the manufacture of superalloys and thermal protection materials, suitable for the high-temperature environment of aircraft and spacecraft.
In addition to Tantalum Foil and Strip, we also produce Tantalum Tube & Pipe, Tantalum Sheet & Plate, Tantalum Ingot, Tantalum Pellets, Tantalum Rod, Tantalum Wire, Tantalum Disc, Tantalum Shield, Tantalum Target, Tantalum machined parts, Tantalum Spherical Powder.They meet Standard ASTM B 364, ASTM B 365, ASTM B 708, ASTM B 521, ASTM F560 R05200, R05400.
