Fortu Tech is an ISO Certified Corporation located in China and specializes in manufacturing Pure Tantalum Rod&Bar. We have more than 20 years of production experience. Our products are Conflict Free material.
| Common specifications | ||||||||
| Thickness inch | 0.15 | 0.2 | 0.25 | 0.3 | 0.35 | 0.4 | 0.45 | 0.5 |
| Thickness mm | 3.81 | 5.08 | 6.35 | 7.62 | 8.89 | 10.16 | 11.43 | 12.7 |

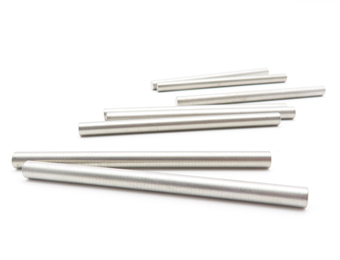

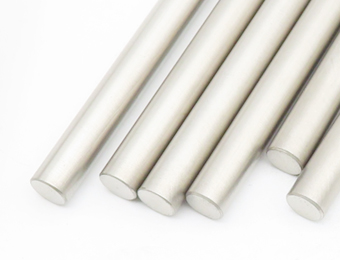

Tantalum rods have strong corrosion resistance to most acids, alkalis and salts at room temperature. Tantalum bars form an oxide film in the air. This oxide film makes the Ta rods resistant to oxidation.At high temperatures, tantalum bars do not react to most chemicals.Tantalum rods are an ultra-high temperature metal.
Tantalum rods have a very high melting point. Tantalum rod has good ductility and plasticity. At high temperatures, tantalum rods can be stretched and rolled into tantalum foils and tantalum wires. Tantalum rods have very good electrical and thermal conductivity.
| ASTM B365 R05200 Chemical Requirements Tantalum Rod | |||||||||||
| Element% | C | N | O | H | Ti | Nb | Fe | Si | W | Ni | Mo |
| Content Maximum % | 0.01 | 0.01 | 0.015 | 0.0015 | 0.01 | 0.1 | 0.01 | 0.005 | 0.05 | 0.01 | 0.02 |
| ASTM B365 R05400 Chemical Requirements Tantalum Rod | |||||||||||
| Element% | C | N | O | H | Ti | Nb | Fe | Si | W | Ni | Mo |
| Content Maximum % | 0.01 | 0.01 | 0.03 | 0.0015 | 0.01 | 0.1 | 0.01 | 0.005 | 0.05 | 0.01 | 0.02 |
| The specification of ASTM B365 | |
| ASTM B 365 R05200 | Unalloyed tantalum, electron-beam furnace or vacuum-arc melt, or both, tantalum rod and tantalum bar |
| ASTM B 365 R05400 | Unalloyed tantalum, powder-metallurgy consolidation tantalum rod and tantalum bar |
| ASTM B 365 R05255 | Tantalum alloy, 90 % tantalum, 10 %tungsten, electron-beam furnace of vacuum-arc melt, or both, Ta10W rod and Ta10W bar |
| ASTM B 365 R05252 | Tantalum alloy, 97.5 % tantalum, 2.5 %tungsten, electron-beam furnace or vacuum-arc melt, or both, Ta2.5W rod and Ta2.5W bar |
| ASTM B 365 R05240 | Tantalum alloy, 60 % tantalum, 40 % niobium, electron-beam furnace or vacuum-arc melt, Ta40Nb rod and Ta40Nb bar |
If you have inquiry or want to discuss your design with us, please write email to us.
We will reply your email within 24 hours.
Annealed Condition (90% Minimum Recrystallized)
| Mechanical Properties of Ta Rod ASTM B365 | ||
| Diameter | Ultimate Tensile Strength | Elongation |
| 0.010" to 0.0149" | 35 000 min, psi | 10% |
| 0.254mm to 0.379mm | 241 min, Mpa | 10% |
| 0.015" to 0.0249" | 35 000 min, psi | 15% |
| 0.381mm to 0.633mm | 241 min, Mpa | 15% |
| 0.025" to 0.124" | 30 000 min, psi | 20% |
| 0.635mm to 3.14mm | 207 min, Mpa | 20% |
| Cas No. of Ta | 7440-25-7 |
| EINECS No.of Ta | 231-135-5 |
| Element class of Ta | Transition metal element |
| Relative atomic mass of Ta | 180.94788(12C = 12.0000) |
| Density of Ta | 16650kg/m3；16.654g/cm3 |
| Melting Point of Ta | 2996 ℃ |
| Boiling Point of Ta | 5425 ℃ |
| Hardness of Ta | 6.5 |
| Position of Ta | Period six, group VB, region d |
| Atomic volume of Ta | 10.90cm3/mol |
| Linear expansion coefficient of Ta 0～100℃ | 6.5×10-6 K-1 |
| Critical temperature of superconducting transition of Ta | 4.38K |
| Temperature Coefficient of Resistivity of Ta | 3820 ppm/°C |
Pure tantalum rods can be used to manufacture jewelry, such as tantalum rings. Tantalum rods can also be processed into industrial tantalum valves. Tantalum valves can be used in high temperature environments. Tantalum bars can also be made into tantalum electrodes to extend the service life of the electrodes. Tantalum rods can also be used to process tantalum parts into electronic devices such as mobile phones, computers, and automobiles. In the semiconductor industry, Ta rods can be processed into tantalum processing workpieces with stable performance. Tantalum rods can be processed into bone fixation devices and joint replacements for medical purposes. Because tantalum implantation can be long-term contact with human tissue without causing rejection. Ta bars can also be used to make medical devices. Tantalum rods can be processed into high-temperature components for aerospace applications such as rocket engines and jet engine components.
In addition to Tantalum Rod&Bar, we also produce Tantalum Sheet & Plate, Tantalum Ingot, Tantalum Pellets, Tantalum Foil, Tantalum Wire, Tantalum Disc, Tantalum Shield, Tantalum Target, Tantalum machined parts, Tantalum Spherical Powder. They meet Standard ASTM B 364, ASTM B 365, ASTM B 708, ASTM B 521, ASTM F560 R05200, R05400.
