Fortu Tech is an ISO Certified Corporation located in China and specializes in manufacturing Tantalum alloys Ta10W Foil. We have more than 20 years of production experience. Our products are Conflict Free material.
| Common specifications | ||||||||
| Thickness inch | 0.15 | 0.2 | 0.25 | 0.3 | 0.35 | 0.4 | 0.45 | 0.5 |
| Thickness mm | 3.81 | 5.08 | 6.35 | 7.62 | 8.89 | 10.16 | 11.43 | 12.7 |

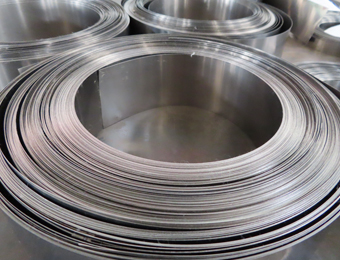

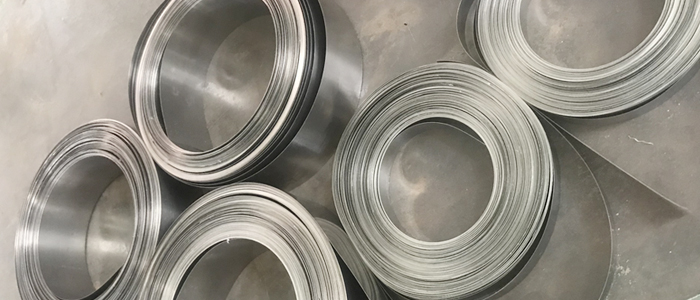

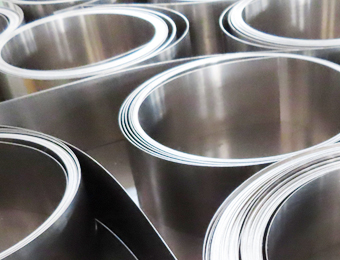

Tantalum-10 tungsten foil is an ultra-thin strip made by precise rolling from an alloy containing 10% tungsten and 90% tantalum. The typical thickness range of Ta-10W foil is 0.01 to 0.5mm. Special processes can be used to prepare micron-sized films. The melting point of Tantalum alloys Ta-10W strip is as high as over 3000°C (2996°C for pure tantalum foil and 3422°C for pure tungsten foil), and it maintains high strength at 1800° C. Its oxidation resistance is superior to that of pure tantalum foil.
Tantalum 10% tungsten strip inherits the ultimate corrosion resistance of tantalum. Tantalum-10% tungsten foil can resist extreme media such as boiling concentrated hydrochloric acid, aqua regia, and molten alkali metals.
Ta-10W R05255 foil combines the hardness of tungsten foil with the processability of tantalum foil.
| 90 % tantalum 10 % tungsten wire | ||||||||||||
| Element % | C | N | O | H | Nb | Fe | Ti | W | Mo | Si | Ni | Ta |
| Ta10W alloys | 0.01 | 0.01 | 0.015 | 0.0015 | 0.1 | 0.01 | 0.01 | 9~11 | 0.02 | 0.005 | 0.01 | Balance |
| 90 % tantalum 10 % tungsten powder GJB 9572-2018 | ||||||||||||
| Element % | C | N | O | H | Nb | Fe | Ti | W | Mo | Si | Ni | Ta |
| Ta10W alloys | 0.0007 | 0.001 | 0.01 | 0.0015 | 0.0008 | 0.0003 | 0.0001 | 9~11 | 0.002 | 0.0005 | 0.0003 | Balance |
If you have inquiry or want to discuss your design with us, please write email to us.
We will reply your email within 24 hours.
| Mechanical Properties of Ta10W Plate R05255 | ||
| Ultimate Tensile Strength | Yield Strength | Elongation |
| 70000 min, psi | 60000 min, psi | 15% |
| 482 min, Mpa | 414 min, Mpa | 15% |
| Comparison of Physical property of Ta-10W foil and Ta-12W foil | |||
| Parameters | Ta-10W foil | Ta-12W foil | Difference |
| Component | 90%Ta-10%W | 88%Ta-12%W | Difference of 2%W |
| Density | 16.8%-17.0% | 17.0%-17.2% | 88%Ta12%W foil is higher |
| Melting Point | 3000℃-3100℃ | 3050℃-3150℃ | 88Ta-12W alloys foil is higher |
| Thermal conductivity | 54W/m.k | 52W/m.k | Tungsten has better heat conductivity |
| Electrical resistivity | 0.15-0.18 | 0.16-0.19 | The resistivity of tungsten is higher |
Tantalum-10% Tungsten alloy foil (Ta-10W) conforming to ASTM B708 R05255 is a premium refractory material offering:
1. Extreme temperature resistance (>2000°C)
2. Superior corrosion immunity (HF/H2SO4/Cl2 environments)
3. Exceptional strength-to-weight ratio (UTS: 550-700 MPa).
Tantalum alloys -10 tungsten foil based on ASTM B708 R05255 can be applied in the semiconductor industry, aerospace industry, medical industry, energy industry and military industry. In the semiconductor industry, it can be used in EUV Lithography Mask Substrates, plasma etch chamber liner replacement and low CTE metal foil for semiconductor. Tantalum alloys foil Ta-10W based on ASTM B708 R05255 is used as the substrate for extreme ultraviolet lithography masks and the inner lining of plasma etching chambers. In the aerospace field, It can be used in satellite thermal shield flexible material and hypersonic leading edge material. Tantalum alloys strip Ta-10W is used as expandable satellite thermal screens and flexible sealing gaskets for rocket engines. In the medical industry, it can be used in biocompatible neural electrode substrate and proton therapy collimator material stopping power. Tantalum-10% tungsten foil is used as the substrate for micro-neural electrode arrays and collimators for proton therapy devices. In the energy sector, it can be used in fusion reactor first wall armor material and dendrite-free lithium deposition metal foil. Tantalum-10 tungsten foil can be used as armor foil for the first wall of fusion reactors and as a carrier for lithium metal deposition in solid-state batteries. In the military industry, It can be used in rocket engine sealant high pressure and fragment containment armor for military. Ta-10 tungsten foil is used as an adaptive thermal protection layer for the front edge of hypersonic vehicles.
In addition to Tantalum alloys Ta10W Foil and Strip, we also produce Tantalum alloys Ta-10W Wire, Tantalum alloys Ta10W Sheet & Plate, Tantalum alloys Ta-10W Ingot, Tantalum alloys Ta-10W Pellets, Tantalum alloys Ta-10W Rod, Tantalum alloys Ta-10W Tube and Pipe, Tantalum alloys Ta-10W Disc, Tantalum alloys Ta-10W Shield, Tantalum alloys Ta-10W Target, Tantalum alloys Ta-10W machined parts, Tantalum alloys Ta-10W Additive.
